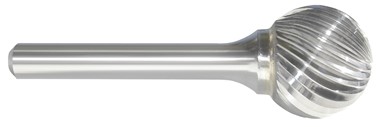

SD-1 BALL S/C

View Larger

Part Number: CP-51544

Availability: In Stock

$7.64

Quantity:

Total:$7.64

Description:

General purpose single cut flute pattern provides for good material removal and work piece finishes. Designed for: contouring, hole deburring and build up welding preparation in brass, bronze, copper, cast iron, 45-60 Rc steels, carbon steel, nickel chrome steel, stainless steel, steel weldments and titanium.

Icons:

Technical Specifications:

Category: SD-Shape - Ball / Spherical

Industry Specification: SD-1

Flutes: Single Cut

Diameter: 1/4"

Diameter
(Decimal Inch): 0.2500 In.

Diameter
(Metric): 6.35mm

Length of Cut: 7/32"

Length of Cut
(Decimal Inch): 0.2188 in.

Shank Diameter: 1/4"

Shank
(Decimal Inch): 0.2500 in.

Overall Length: 2"

Overall Length
(Decimal Inch): 2.0000 in.

Single Double End: Single

Tool Length: Regular

Finish: Bright

End Style: Ball Shape

Material: Solid Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

NOTE: Included in the following sets: CP-52262,CP-52259,CP-52260,CP-52276,CP-52271,CP-52266,CP-52273

Applications:

Deburring

Shipping:

Usually ships SAME DAY if ordered before 6pm Eastern via UPS from California

Speeds & Feeds:

Click here for recommended speeds & feeds.

Additional Details:

Made in the USA
Right Hand Cut
C2 Grade Tungsten, Submicron Grain Carbide with 10% Cobalt Binder
Bright finish
