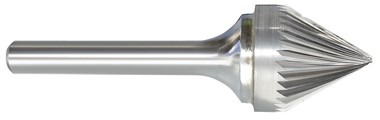

SJ-7 60° ANGLE S/C

View Larger

Part Number: CP-51615

Availability: In Stock

$26.42

Quantity:

Total:$26.42

Description:

General purpose single cut flute pattern provides for good material removal and work piece finishes. Designed for: acute angle machining, chamfering and countersinking in brass, bronze, copper, cast iron, 45-60 Rc steels, carbon steel, nickel chrome steel, stainless steel, steel weldments and titanium.

Icons:

Technical Specifications:

Category: SJ-Shape - 60° Included Angle Cone

Industry Specification: SJ-7

Flutes: Single Cut

Diameter: 3/4"

Diameter
(Decimal Inch): 0.7500 In.

Diameter
(Metric): 19.05mm

Length of Cut: 11/16"

Length of Cut
(Decimal Inch): 0.6875 in.

Shank Diameter: 1/4"

Shank
(Decimal Inch): 0.2500 in.

Overall Length: 2-7/16"

Overall Length
(Decimal Inch): 2.4375 in.

Single Double End: Single

Tool Length: Regular

Finish: Bright

End Style: 60° Cone

Included Angle: 60°

Material: Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Applications:

Deburring

Shipping:

Usually ships SAME DAY if ordered before 6pm Eastern via UPS from California

Speeds & Feeds:

Click here for recommended speeds & feeds.

Additional Details:

Made in the USA
Right Hand Cut
C2 Grade Tungsten, Submicron Grain Carbide with 10% Cobalt Binder
Bright finish
