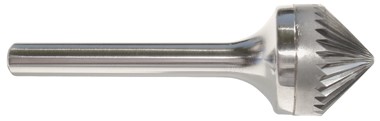

SK-3 90° ANGLE S/C

View Larger

Part Number: CP-51624

Availability: In Stock

$7.96

Quantity:

Total:$7.96

Description:

General purpose single cut flute pattern provides for good material removal and work piece finishes. Designed for: acute angle machining, chamfering and countersinking in brass, bronze, copper, cast iron, 45-60 Rc steels, carbon steel, nickel chrome steel, stainless steel, steel weldments and titanium.

Icons:

Technical Specifications:

Category: SK-Shape - 90° Included Angle Cone

Industry Specification: SK-3

Flutes: Single Cut

Diameter: 3/8"

Diameter
(Decimal Inch): 0.3750 In.

Diameter
(Metric): 9.53mm

Length of Cut: 3/16"

Length of Cut
(Decimal Inch): 0.1875 in.

Shank Diameter: 1/4"

Shank
(Decimal Inch): 0.2500 in.

Overall Length: 1-15/16"

Overall Length
(Decimal Inch): 1.9375 in.

Single Double End: Single

Tool Length: Regular

Finish: Bright

End Style: 90° Cone

Included Angle: 90°

Material: Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

NOTE: Included in the following sets: CP-52277,CP-52264

Applications:

Deburring

Shipping:

Usually ships SAME DAY if ordered before 6pm Eastern via UPS from California

Speeds & Feeds:

Click here for recommended speeds & feeds.

Additional Details:

Made in the USA
Right Hand Cut
C2 Grade Tungsten, Submicron Grain Carbide with 10% Cobalt Binder
Bright finish
