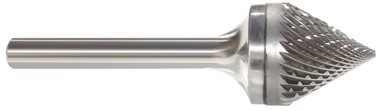

SJ-1 60° SINGLE END D/C

View Larger

Part Number: CP-51924

Availability: In Stock

$7.88

Quantity:

Total:$7.88

Description:

The most popular bur style for ferrous applications. The flutes are ground in both the left and right hand directions, offering better operator control and rapid stock removal in harder materials. Designed for: acute angle machining, chamfering and countersinking in brass, bronze, copper, cast iron, 45-60 Rc steels, carbon steel, nickel chrome steel, stainless steel, steel weldments and titanium.

Icons:

Technical Specifications:

Category: SJ-Shape - 60° Included Angle Cone

Industry Specification: SJ-1

Flutes: Double Cut

Diameter: 1/4"

Diameter
(Decimal Inch): 0.2500 In.

Diameter
(Metric): 6.35mm

Length of Cut: 3/16"

Length of Cut
(Decimal Inch): 0.1875 in.

Shank Diameter: 1/4"

Shank
(Decimal Inch): 0.2500 in.

Overall Length: 2"

Overall Length
(Decimal Inch): 2.0000 in.

Single Double End: Single

Tool Length: Regular

Finish: Bright

End Style: 60° Cone

Included Angle: 60°

Material: Solid Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

NOTE: Included in the following sets: CP-52290,CP-52291,CP-52288,CP-52289,CP-52305

Applications:

Deburring

Shipping:

Usually ships SAME DAY if ordered before 6pm Eastern via UPS from California

Speeds & Feeds:

Click here for recommended speeds & feeds.

Additional Details:

Made in the USA
Right Hand Cut
C2 Grade Tungsten, Submicron Grain Carbide with 10% Cobalt Binder
Bright finish
