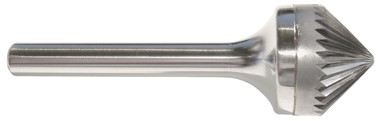

SK-1 DOUBLE END S/C

View Larger

Part Number: CP-52213

Availability: In Stock

$11.30

Quantity:

Total:$11.30

Description:

General purpose single cut flute pattern provides for good material removal and work piece finishes. Designed for: acute angle machining, chamfering and countersinking in brass, bronze, copper, cast iron, 45-60 Rc steels, carbon steel, nickel chrome steel, stainless steel, steel weldments and titanium.

Icons:

Technical Specifications:

Category: SK-Shape - 90° Included Angle Cone

Industry Specification: SK-1

Flutes: Single Cut

Diameter: 1/4"

Diameter
(Decimal Inch): 0.2500 In.

Diameter
(Metric): 6.35mm

Length of Cut: 1/8"

Length of Cut
(Decimal Inch): 0.1250 in.

Shank Diameter: 1/4"

Shank
(Decimal Inch): 0.2500 in.

Overall Length: 2"

Overall Length
(Decimal Inch): 2.0000 in.

Single Double End: Double

Tool Length: Regular

Finish: Bright

End Style: 82° Cone

Included Angle: 82°

Material: Solid Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Applications:

Deburring

Shipping:

Usually ships SAME DAY if ordered before 6pm Eastern via UPS from California

Speeds & Feeds:

Click here for recommended speeds & feeds.

Additional Details:

Made in the USA
Right Hand Cut
C2 Grade Tungsten, Submicron Grain Carbide with 10% Cobalt Binder
Bright finish
